Stream

Week 0x9 I

Prof. Calvin

Crypto

Announcements

  • Welcome to CS 540
    • A quick digression on patterns & antipatterns
    • C relevant
    • Then data structures
  • Action Items:
    • BigRSA due this week.
    • Final released

Final

  • The final is a write-up with supporting code.
  • The “MS CS” extensions for the next 4 weeks are 3 technical papers and 1 blog.
  • I have “tech debt” on the genrsa and linker VoDs, which will help you if you get stuck on the final, but right now I could only do them poorly, rather than well.
  • Let’s review BTCinC and the readings.

Today

  • Antipatterns

An anti-pattern in software engineering, project management, and business processes is a common response to a recurring problem that is usually ineffective and risks being highly counterproductive.

Today

  • Duplication
  • Deficient encapsulation v. Broken modularization
  • Magic Numbers
  • Overthinking
  • Big Ball of Mud v. God Object
  • Data clump

Duplication

  • And streaming
    • Today’s lecture inspire by the idea of streaming data
    • Huge paradigm change in exascale data application, built the modern cloud.
  • Let’s look at two examples.

Duplicate

  • Say we are working on Base85 and have the following function:
void print_in_base85(uint32_t word);
  • We know:
    • Base85 prints exactly 5 characters of printable ascii/utf-8 for exactly every 4 bytes / 32 bits of data
    • We know that every single 32-bit word is independent.

Base85

  • It is perhaps impossible but certainly “wrong” to perform base85 encoding without this function.
  • So no matter what, we will have this function in some loop over some data.
do {
    print_in_base85(word);
} while ( conditional )

Design Decision

  • We have to decide how to populate word.
    • We need 32 bits
    • We need to read it from a file.
FILE *fp = fopen("file.txt", "r");
uint32_t word, conditional;
do {
    print_in_base85(word);
} while ( conditional )
FILE *fp = fopen("file.txt", "r");
uint32_t word, conditional;
do {
    print_in_base85(word);
} while ( conditional );

Do we?

  • Copy (duplicate) all data then read, or…
  • Read 32 bits at a time
FILE *fp = fopen("file.txt", "r")
uint32_t words[∞], conditional, i = 0;
fread(words, ∞, 1, *fp);
do {
    print_in_base85(words[i++]);
} while ( conditional );
FILE *fp = fopen("file.txt", "r");
uint32_t word, conditional;
do {
    fread(word, 4, 1, fp);
    print_in_base85(word);
} while ( conditional );

Stream!

  • We never need local copies if we have independence!
  • SHA256 - 512 bytes
  • Base64 - 3 bytes
  • Base85 - 4 bytes
  • RSA - Fewer bytes than \(n = pq\)
FILE *fp = fopen("file.txt", "r");
uint32_t word, conditional;
do {
    fread(word, 4, 1, fp);
    print_in_base85(word);
} while ( conditional );

Example

  • From my research
    • Wrote a Python script the handles some hardware design data.
    • I use an existing tool in Java that handles the same data.
    • I implemented by tool with streaming

Timing

Stream

  • Python 3, the world’s slowest language, writes 15.5 MB in .323 seconds
  • Java, the other slowest language, reads 15.5 MB in 14.128 seconds.
    • Python at 48x speed
  • Both tools fully simulate the processor as an automata, use local storage, etc.

Visualize

  • I think of streaming as follows.
  • We image we want to make some “File B” from some “File A”

finite_automata file1 File A file2 File B file1->file2

Visualize

  • Imagine SHA hashing Pride and Prejudice
    • You did this.

finite_automata file1 P&P file2 SHA file1->file2

Visualize

  • Imagine Base64 encoding an .svg.
    • You can do this, quarto does this.

finite_automata file1 SVG file2 B64 file1->file2

Streaming

  • A file contains of \(n\) words of \(b\) bits.

finite_automata file1 0x0 0x4 0x8 0xc file2 ??? ??? ??? ??? file1->file2

Streaming

  • An executable maps files-to-files
    • base64 is a bijection - remember those?

finite_automata file1 0x0 0x4 0x8 0xc ELF base64 file1->ELF file2 ??? ??? ??? ??? ELF->file2

Bijective

finite_automata cluster_X A cluster_Y B 1 1 w w 1->w 2 2 x x 2->x 3 3 y y 3->y 4 4 z z 4->z

Injective

finite_automata cluster_X A cluster_Y B 1 1 w w 1->w 2 2 x x 2->x 3 3 z z 3->z y y

Surjective

finite_automata cluster_X A cluster_Y B 1 1 w w 1->w 2 2 x x 2->x 3 3 y y 3->y 4 4 4->y

Neither

finite_automata cluster_X A cluster_Y B 1 1 w w 1->w 2 2 x x 2->x 3 3 z z 3->z 4 4 4->z y y

Base64

  • Base64
    • Bijects numbers in \(\mathbb{Z}/n\mathbb{Z}:n = 2^{32}\)
    • To strings of length 5 over these symbols [A-Za-z0-9+/]
  • Base64 encoding of a file
    • Bijects files, we can think of as in binary, to
    • Strings of arbitrary length over [A-Za-z0-9+/]

Streaming

finite_automata file1 0x0 ??? ??? ??? ELF base64 file1:a->ELF file2 ??? ??? ??? ??? ELF->file2:b

Streaming

finite_automata file1 ??? 0x4 ??? ??? ELF base64 file1:a->ELF file2 ??? 0x5 ??? ??? ELF->file2:b

Streaming

finite_automata file1 ??? ??? 0x8 ??? ELF base64 file1:a->ELF file2 ??? ??? 0xA ??? ELF->file2:b

Streaming

finite_automata file1 ??? ??? ??? 0xC ELF base64 file1:a->ELF file2 ??? ??? ??? 0xF ELF->file2:b

Pattern

  • This is the pattern

finite_automata file1 ... 0xX ... ELF base64 file1:a->ELF file2 ... 0xY ... ELF->file2:b

Anti-Pattern

  • This is the anti-pattern of duplication

finite_automata file1 ... 0xX ... fio fread file1->fio file15 buf[∞] fio->file15 ELF base64 file15->ELF file2 ... 0xY ... ELF->file2:b

Big Deal

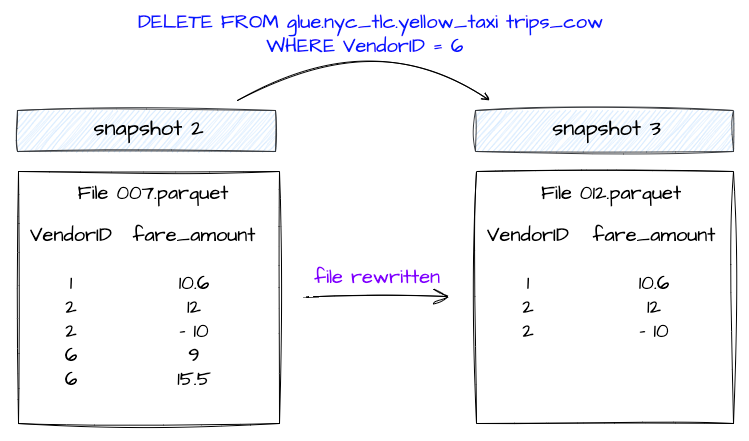

  • Unnecessary duplication is a big deal in database / lakehouse.

Big Deal

  • Unnecessary duplication is what prevented prime generation in my 4096_t.
uint64_t bigdiv(uint64_t *num, uint64_t *den, uint64_t *quo, uint64_t *rem) {
    uint64_t i = getmsb(num), j = getmsb(den), n, d, tmq[S], tmr[S];
  • That is (4 + 2) * 64 * 64 = 24576 = 25 kilobytes for 5/2

Today

  • ✓ Duplication
  • Deficient encapsulation v. Broken modularization
  • Magic Numbers
  • Overthinking
  • Big Ball of Mud v. God Object
  • Data clump

On 4096_t

  • I needed the following on BigRSA
uint64_t bignul(uint64_t *a) {
    size_t i;
    for  (i = 0 ; i < S && !a[i]; i++) { }
    return i != S;
}
  • I needed it on both bigkey and bigrsa
  • I didn’t inclode it in 4096_t
    • I duplicated the code but…

Header files

  • This header file implements the 4096_t… dare I say… API?
void seebig(uint64_t *a);
uint64_t bigadd(uint64_t *in0, uint64_t *in1, uint64_t *sum);
uint64_t bigsub(uint64_t *min, uint64_t *sub, uint64_t *dif);
uint64_t bigmul(uint64_t *in0, uint64_t *in1, uint64_t *out);
uint64_t bigdiv(uint64_t *num, uint64_t *den, uint64_t *quo, uint64_t *rem);
uint64_t bigquo(uint64_t *num, uint64_t *den, uint64_t *quo);
uint64_t bigrem(uint64_t *num, uint64_t *den, uint64_t *rem);
  • I shouldn’t mess with this! It’s already “released”!

Options

  • Implement bignul at the point-of-us, in both bigrsa and bigkey
    • Broken modularization (big function outside of 4096_t)
    • Duplication (in both files)
  • Add bignul back into 4096_t.h
    • Broken modularization
      • E.g., the tests on 4096_t don’t test bignul

Takeaways

  • When we design libraries, software, APIs, test scripts…
  • Make sure we are preserving modularization and enscapsulation
    • Shouldn’t have bigops scattered to the four winds

Another example

  • This function:
void print_in_base85(uint32_t word);
  • Breaks here:
FILE *fp = fopen("file.txt", "r");
uint32_t word, conditional;
do {
    fread(word, 4, 1, fp);
    print_in_base85(word);
} while ( conditional );
  • What is conditional?

Return type

  • This function:
/* returns # of words read */
size_t print_in_base85(uint32_t word)
  • Uses its return value:
FILE *fp = fopen("file.txt", "r");
uint32_t word;
size_t cond;
do {
    fread(word, 4, 1, fp);
    cond = print_in_base85(word);
} while ( 4 == cond );
  • To encapsulate checking end of a file

Bad

  • These are both bad
void print_in_base85(uint32_t word)
size_t fp = fopen("file.txt", "r");
uint32_t word;
do {
    fread(word, 4, 1, fp);
    print_in_base85(word)
} while ( ??? )
size_t print_in_base85(uint32_t word)
size_t s, fp = fopen("file.txt", "r");
uint32_t word;
do {
    fread(word, 4, 1, fp);
    s = print_in_base85(word)
} while ( 4 == s )

Another example

  • biggmp.c, a libgmp implementation of 4096_t I am now providing for usage on bigrsa, could contain much repeated code.

Add and Sub

  • GMP works by:
    • Declaring an mpz_t variable.
    • Initializing with mpz_init
    • Loading in data with mpz_import
    • Performing some operation
    • Extracting to a buffer or 4096_t with mpz_export
    • Calling mpz_clear or slowing using up all your memory.

See it

  • Here’s add with light edits:
void bigadd(uint64_t *in0, uint64_t *in1, uint64_t *sum) {
    mpz_t m0, m1;
    mpz_inits(m0, m1, NULL);
    mpz_import(m0, S, -1, sizeof(uint64_t), 0, 0, a);
    mpz_import(m1, S, -1, sizeof(uint64_t), 0, 0, b);
    mpz_add(m0,m0,m1);
    mpz_export(c, NULL, -1, sizeof(uint64_t), 0, 0, m0);
    mpz_clears(m0, m1, NULL);
}

Both

  • Only one line differs!
    • 8 repeated lines!
    • Would have to fix any bug in \(n\) places!
void bigsub(uint64_t *in0, uint64_t *in1, uint64_t *dif) {
    mpz_t m0, m1;
    mpz_inits(m0, m1, NULL);
    mpz_import(m0, S, -1, sizeof(uint64_t), 0, 0, a);
    mpz_import(m1, S, -1, sizeof(uint64_t), 0, 0, b);
    mpz_sub(m0,m0,m1);
    mpz_export(c, NULL, -1, sizeof(uint64_t), 0, 0, m0);
    mpz_clears(m0, m1, NULL);
}
void bigadd(uint64_t *in0, uint64_t *in1, uint64_t *sum) {
    mpz_t m0, m1;
    mpz_inits(m0, m1, NULL);
    mpz_import(m0, S, -1, sizeof(uint64_t), 0, 0, a);
    mpz_import(m1, S, -1, sizeof(uint64_t), 0, 0, b);
    mpz_add(m0,m0,m1);
    mpz_export(c, NULL, -1, sizeof(uint64_t), 0, 0, m0);
    mpz_clears(m0, m1, NULL);
}

Bug

  • This doesn’t work because sum is used unitialized
    • Requires 2 edits, easy to miss one
void bigsub(uint64_t *in0, uint64_t *in1, uint64_t *dif) {
    mpz_t m0, m1;
    memset(dif, 0, BYTES);
    mpz_inits(m0, m1, NULL);
    mpz_import(m0, S, -1, sizeof(uint64_t), 0, 0, a);
    mpz_import(m1, S, -1, sizeof(uint64_t), 0, 0, b);
    mpz_sub(m0,m0,m1);
    mpz_export(c, NULL, -1, sizeof(uint64_t), 0, 0, m0);
    mpz_clears(m0, m1, NULL);
}
void bigadd(uint64_t *in0, uint64_t *in1, uint64_t *sum) {
    mpz_t m0, m1;
    memset(sum, 0, BYTES);
    mpz_inits(m0, m1, NULL);
    mpz_import(m0, S, -1, sizeof(uint64_t), 0, 0, a);
    mpz_import(m1, S, -1, sizeof(uint64_t), 0, 0, b);
    mpz_add(m0,m0,m1);
    mpz_export(c, NULL, -1, sizeof(uint64_t), 0, 0, m0);
    mpz_clears(m0, m1, NULL);
}

Better

  • Write some function that does all the setup and teardown
  • Pass that function the operation as an argument
void apply(uint64_t *in0, uint64_t *in1, uint64_t *out, function) {
    mpz_t m0, m1;
    memset(sum, 0, BYTES);
    mpz_inits(m0, m1, NULL);
    mpz_import(m0, S, -1, sizeof(uint64_t), 0, 0, a);
    mpz_import(m1, S, -1, sizeof(uint64_t), 0, 0, b);
    function(m0,m0,m1);
    mpz_export(c, NULL, -1, sizeof(uint64_t), 0, 0, m0);
    mpz_clears(m0, m1, NULL);
}

Code reuse!

uint64_t bigadd(uint64_t *in0, uint64_t *in1, uint64_t *sum) {
    apply(in0, in1, sum, mpz_add);
    return 0;
}

uint64_t bigsub(uint64_t *min, uint64_t *sub, uint64_t *dif) {
    apply(min, sub, dif, mpz_sub);
    return 0;
}

uint64_t bigmul(uint64_t *in0, uint64_t *in1, uint64_t *out) {
    apply(in0, in1, out, mpz_mul);
    return 0;
}

In practice

  • We declare a function which accepts a function as an argument by giving the functions type, and a local variable name.
  • We call a function which “” by using the function name.
  • mpz_add returns void and accepts 3 mpz_t arguments.
    • Two are const which is out-of-scope for now
    void (f)(mpz_t, const mpz_t, const mpz_t)

Declare it:

void apply(void (f)(mpz_t, const mpz_t, const mpz_t), uint64_t *in0, uint64_t *in1, uint64_t *out) {
    mpz_t m0, m1;
    /* much text */
    return;
}

Call it:

  • This code is correct, just use name.
uint64_t bigmul(uint64_t *in0, uint64_t *in1, uint64_t *out) {
    apply(in0, in1, out, mpz_mul);
    return 0;
}

Higher Order

  • Oh by the way, this encapsulates libgmp.
  • This encapsulation method is the function programming concept of higher order functions.
  • They are great.
  • Not fully supported in C 😭
    • We can’t return functions, just pass as args
  • Oh by the way, this encapsulates libgmp.

Today

  • ✓ Duplication
  • ✓ Deficient encapsulation v. Broken modularization
  • Magic Numbers
  • Overthinking
  • Big Ball of Mud v. God Object
  • Data clump

Who or what is “4”?

size_t s, fp = fopen("file.txt", "r")
uint32_t word;
do {
    fread(word, 4, 1, fp);
    s = print_in_base85(word)
} while ( 4 == s )

Sizeof

size_t s, fp = fopen("file.txt", "r")
uint32_t word;
do {
    fread(word, sizeof(uint32_t), 1, fp);
    s = print_in_base85(word)
} while ( sizeof(uint32_t) == s )

Define

  • Add a define:
#define WORD_SIZE sizeof(uint32_t)
  • By convention, as we know, all caps.
size_t s, fp = fopen("file.txt", "r")
uint32_t word;
do {
    fread(word, WORD_SIZE, 1, fp);
    s = print_in_base85(word)
} while ( WORD_SIZE == s )

4096_t

  • I used defines to allow 4096_t to be changed to 8192 with a change to a single line of code
  • But this only works if you use the defines everywhere
4096_t.h
#define S (size_t)(4096 / 64)
#define BYTES S * sizeof(uint64_t)
  • Imagine a ???_t and then just using different header files with different S values.

Today

  • ✓ Duplication
  • ✓ Deficient encapsulation v. Broken modularization
  • ✓ Magic Numbers
  • Overthinking
  • Big Ball of Mud v. God Object
  • Data clump

Overthinking

  • It’s just bits.
uint32.c
#include <stdio.h>

#include <stdio.h>

void show(char *buf) {

        int *alias = (int *)buf;
        printf("%%s -> %s\n", buf);
        printf("%%d -> %d\n", (int)*alias);
        printf("%%u -> %u\n", (unsigned)*alias);
        printf("%%x -> %x\n", (unsigned)*alias);
        printf("As array: [%d, %d, %d, %d]\n", buf[0], buf[1], buf[2], buf[3]);
        printf("As array: [%x, %x, %x, %x]\n", buf[0], buf[1], buf[2], buf[3]);
}

void main() {
        char buf[4] = "hi!";
        int *alias = (int *)buf;
        printf("\n\"hi!\" n ways:\n");
        show(buf)
        printf("\nadd 10 to *alias\n");
        *alias += 10;
        show(buf);
}

Not Numbers

printf("%%s -> %s\n", buf);
printf("%%d -> %d\n", (int)*alias);
printf("%%u -> %u\n", (unsigned)*alias);
printf("%%x -> %x\n", (unsigned)*alias);
printf("As array: [%d, %d, %d, %d]\n", buf[0], buf[1], buf[2], buf[3]);
printf("As array: [%x, %x, %x, %x]\n", buf[0], buf[1], buf[2], buf[3]);

Not Letters

show(buf)
*alias += 10;
show(buf);

Just bits

  • We, the coder, give them meaning.
  • What does magic number 6650210 mean?
*alias = 6650210; /* New */
show(buf);

Today

  • ✓ Duplication
  • ✓ Deficient encapsulation v. Broken modularization
  • ✓ Magic Numbers
  • ✓ Overthinking
  • Big Ball of Mud v. God Object
  • Data clump

Languages

  • Not all patterns and antipatterns exist in all languages.

Peter Norvig demonstrates that 16 out of the 23 patterns in the Design Patterns book (which is primarily focused on C++) are simplified or eliminated (via direct language support) in Lisp

C good

  • God Objects cannot be made in C, an imperative language.
  • But, we should make sure we use header files. (No “God .c”)
  • Famously, the C preprocess (remember Macros) starts to look an awful lot like a LISP implementation in more sophisticated projects.

C LISP

  • I can’t read this, but we all know what CAT means
#define _E(...) __VA_ARGS__
#define _N(...)
#define _e(x) x
#define _n(x)
#define _CAT(x,y) x##y
#define CAT(x,y) _CAT(x,y)
#define _e_sem(x) x(
#define _bsem )

Today

  • ✓ Duplication
  • ✓ Deficient encapsulation v. Broken modularization
  • ✓ Magic Numbers
  • ✓ Overthinking
  • ✓ Big Ball of Mud v. God Object
  • Data clump

Mandatory

  • C contains a language-mandatory data clump anti-pattern
  • This is a data clump - two values that only make sense together.
int main(int argc, char **argv)

Null termination

  • In practice, you can null terminate vectors just like strings
    • libgmp does this
  • Null terminated strings are just a special case of null-terminated vectors.
biggmp.c
mpz_t m0, m1;
mpz_inits(m0, m1, NULL);
/* various activities */
mpz_clears(m0, m1, NULL);
  • Avoids duplication, like 2x mpz_init calls

Today

  • ✓ Duplication
  • ✓ Deficient encapsulation v. Broken modularization
  • ✓ Magic Numbers
  • ✓ Overthinking
  • ✓ Big Ball of Mud v. God Object
  • ✓ Data clump

Previews

  • struct
    • C language data structures
  • malloc
    • Dynamically sized C types

Or…

  • Riff on P strings?
